ToyCap3 Portable Packet Capture 40G
40G capture you can carry to the problem.

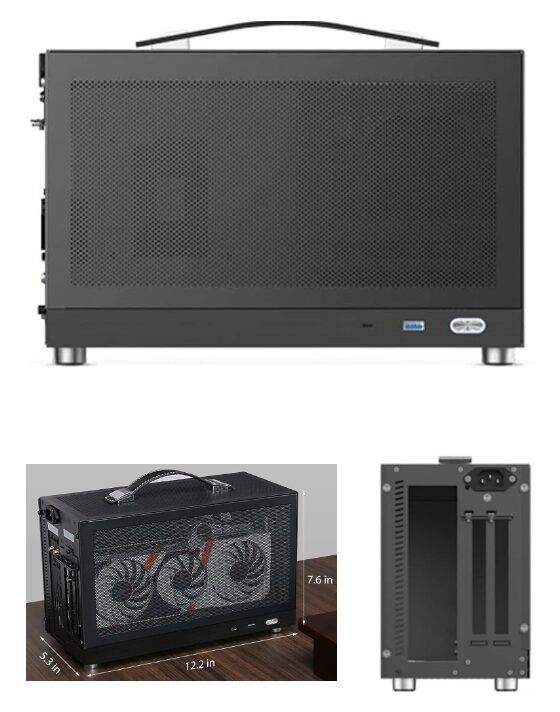

Network problems don’t only happen in the meeting room. Data centers, customer sites, links between offices: they call for the mobility to capture and analyze on the spot. ToyCap3 packs FPGA-based performance into a compact chassis, recording up to 40 Gbps of traffic with zero loss across 10G ×4 or 25G ×4 ports.
Why ToyCap3
- Flexible port configuration: 10G ×4 or 25G ×4 to match your environment.
- L2/L3/L4 line-rate filtering: capture only the traffic you need, without wasting storage.
- PCAP replay, standard: play captured data back at a set rate or the original rate, for fault reproduction and testing.
- NetFlow output (option): 1:1 sampling at line rate, widening the scope of traffic analysis.
- Japanese web GUI: a simple interface that’s clear to operate without specialist knowledge.

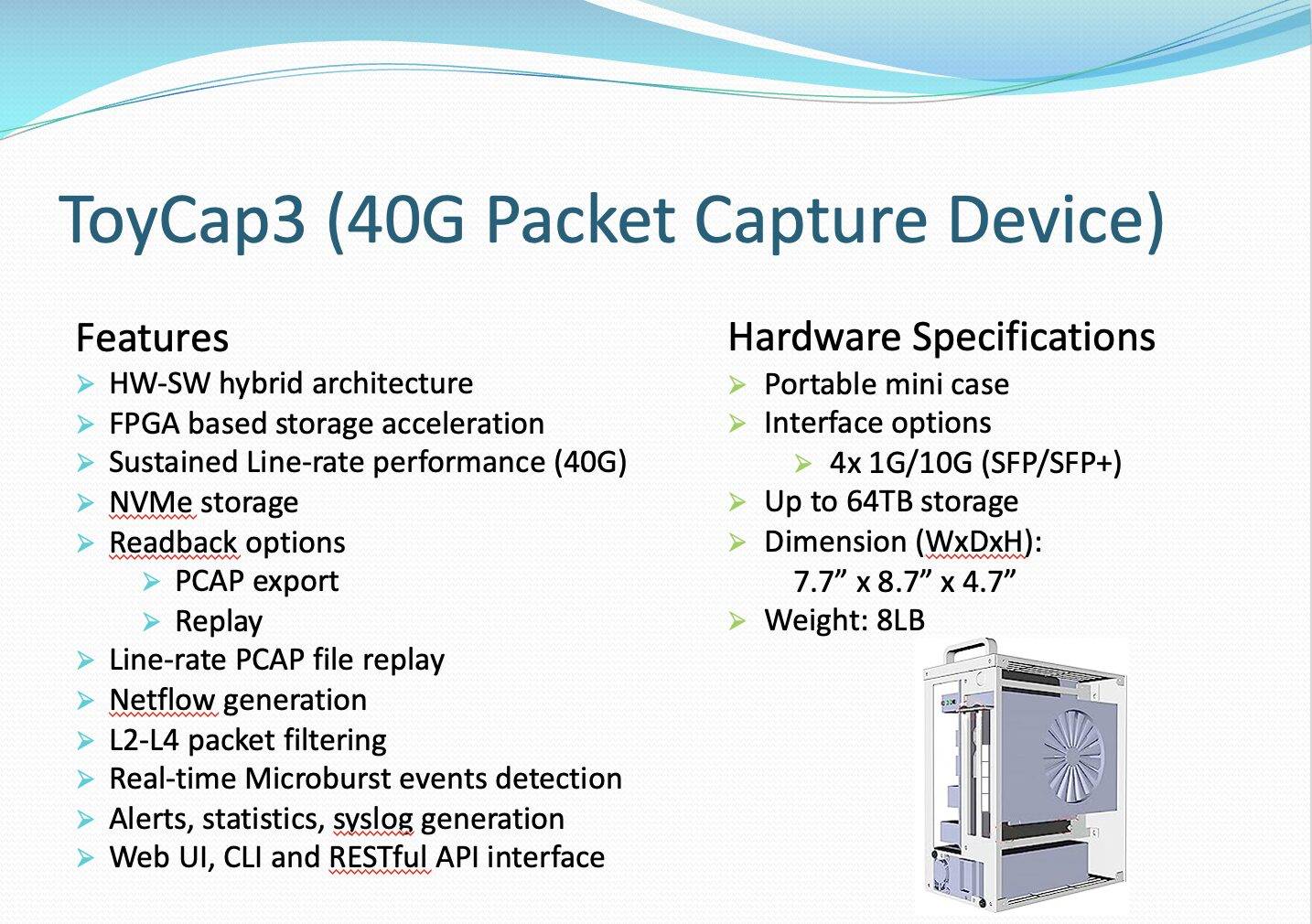

ToyCap3 Portable Packet Capture 40G
- Throughput
- Up to 40 Gbps, lossless
- Ports
- 10G ×4 or 25G ×4
- Engine
- FPGA-based
- Filtering
- L2 / L3 / L4 line-rate filter
- Replay
- PCAP replay at set or actual rate (standard)
- NetFlow
- 1:1 line-rate output (option)
